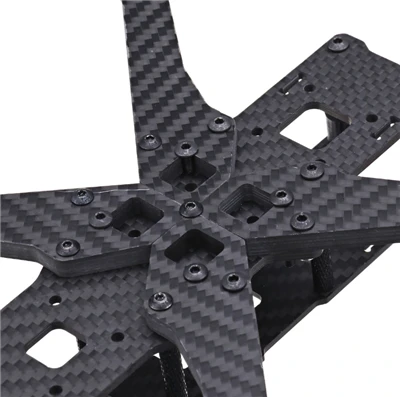

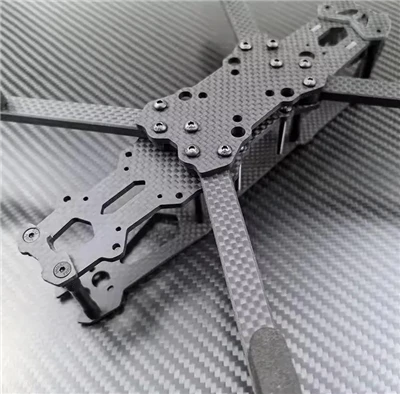

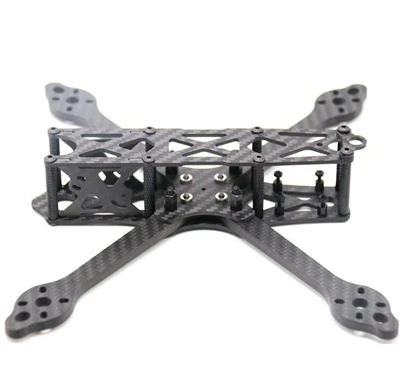

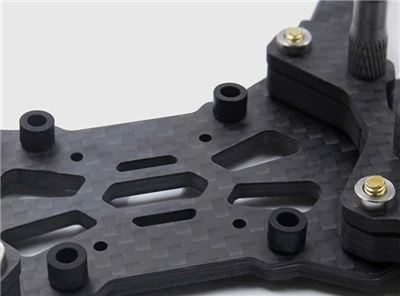

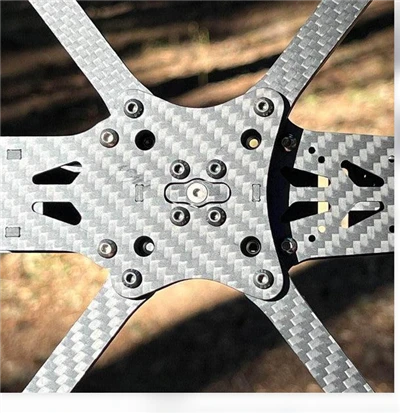

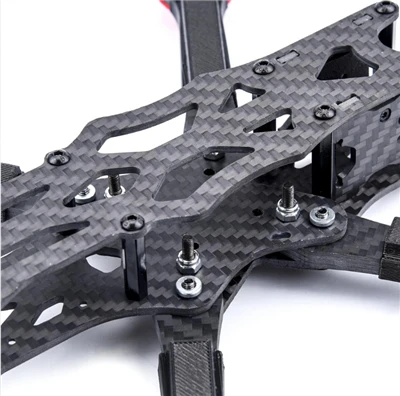

CNC Routed Carbon Arm Mount Plate For 7 To 10 Inch FPV Drone Frame | Source Factory Legal Export

Detailed Description

6061-T6 motor plates at 2.0 mm survive one cartwheel; the second usually leaves 0.15 to 0.25 mm permanent set at the M4 boss. This plate runs 1.6 mm finished thickness, 53 percent mass reduction versus the aluminum reference, and the UD 0 degree band through the arm root carries the cyclic flap load. Four-axis CNC uses climb-cut with mist coolant; bore tolerance plus minus 0.05 mm so pressed-in brass inserts seat without radial ply peel. Salt-spray 96 hour ASTM B117 coupon shows no filament wicking after edge seal. Three FPV teams running our Q1 batch logged zero mount-related arm resonance through 200 plus flight hours. Guangdong Shenyang New Material, Huizhou facility, autoclave cure records and CNC tool-path logs are archived per serial number for export compliance.

Specification

Custom FAQ

Q: Is the edge resin seal included or optional per piece

A: Edge seal is standard on every routed panel and the seal thickness is logged on the inspection card per batch.

Q: Can you hold plus 0.02 minus 0.00 on the four motor mount bores

A: Bore tolerance plus 0.02 minus 0.00 is achievable on M4 bosses with a second finishing pass scheduled on the 4.0 m CNC.

Q: Lead time for 200 pieces with our stack-up drawing

A: Prototype proof panel in 7 working days then production batch 18 to 22 working days including final flatness scan.
