Laminated Carbon Fiber Sheet

Laminated Carbon Fiber Sheet
Details:

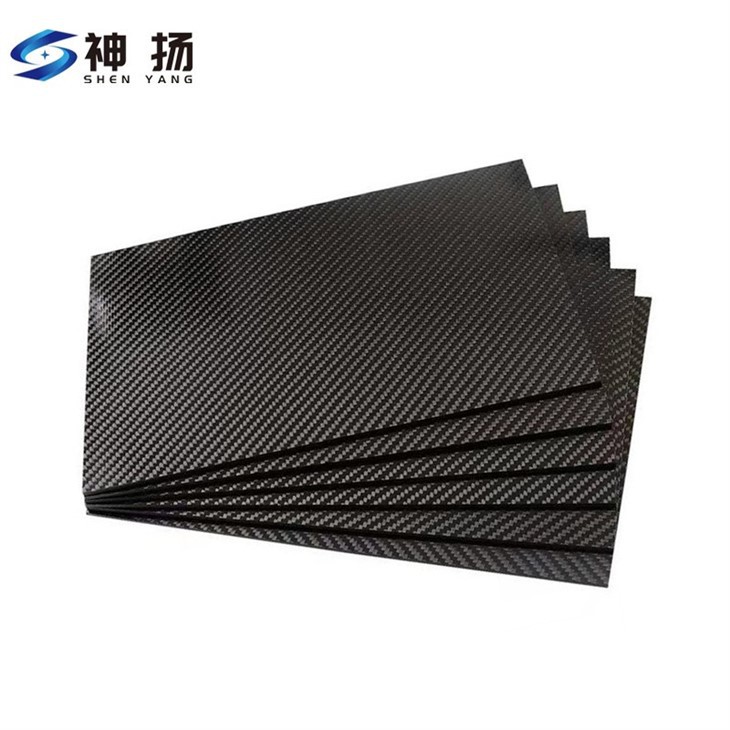

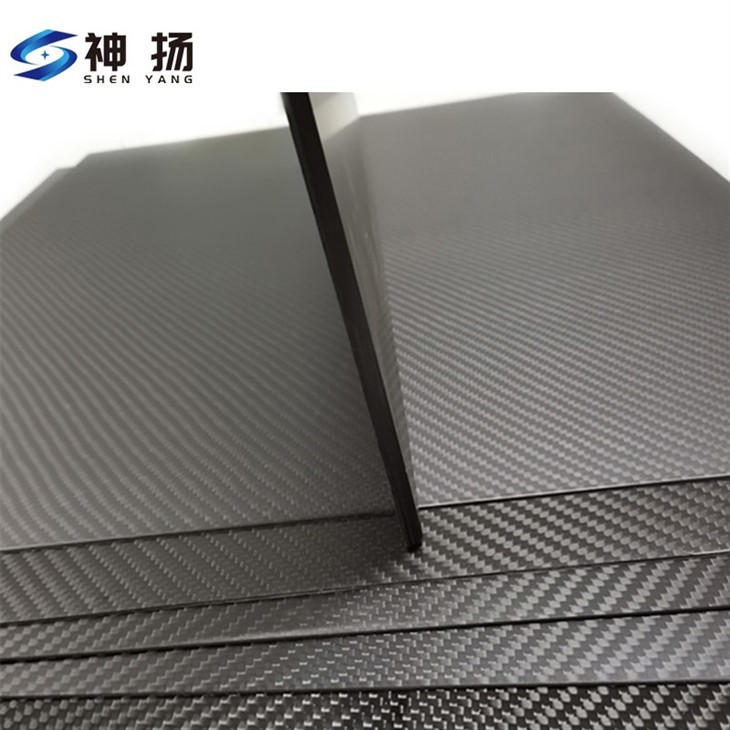

Our factory fabricates carbon fiber laminate sheets, also known as CFRP plates. We use continuous carbon cloth bonded with epoxy resin under hot compression.
Available grades cover T300, T700 and T800. You can pick plain weave or 2×2 twill weave, matte or glossy surface finish.
Thickness can be made from 0.5mm up to 20mm. We offer custom sizing and in-house CNC machining for robotics, fixtures and racing projects.
Send Inquiry
Description
Send Inquiry

Carbon Fiber Laminate Sheets | Industrial Custom Composite Supplier

We are a real‑world carbon composite manufacturer with hands‑on export experience. Over the years we have worked directly with robotics system integrators, drone developers, motorsport workshops and factory fixture engineers. Many of these customers came to us after bad experiences: aluminum parts too heavy for moving assemblies, cheap composite sheets warping under temperature swings, or third‑party machining ruining raw panels. Our carbon fiber laminate sheets are hot‑press consolidated on‑site using continuous carbon fabric and carefully‑selected epoxy resin. We keep common‑size sheets in stock, and we also produce custom blanks plus finished CNC‑machined parts based on customer CAD files or physical samples.

Core Advantages

Superior strength‑to‑weight for real assembly use cases Against aluminum and stainless steel of equivalent structural strength, our carbon fiber laminate sheets cut significant dead weight. This delivers tangible benefits for robot arm assemblies and multi‑rotor drone frames - lower component weight eases the load on motors and actuators. Please keep in mind real‑world performance is heavily influenced by ply stacking design.

Stable geometry through temperature variation We have handled plenty of customer returns sourced from other suppliers where low‑grade laminates warped and threw off fixture measurement accuracy. Our properly cured carbon fiber laminate sheets hold consistent dimensions across typical operating‑temperature shifts, a critical trait for inspection jigs and optical mounting plates. Fiber orientation directly impacts thermal expansion performance, so we always discuss working conditions before material selection.

Improved corrosion and cyclic‑fatigue performance Unlike steel, carbon fiber laminate sheets will not rust in damp workshop environments. They hold up well under repeated cyclic mechanical loading, extending service life for moving components. They are not resistant to aggressive strong chemicals, so we always ask buyers to share details of their operating environment during early‑stage communication.

Practical surface finish choices for different end‑uses Glossy carbon fiber laminate sheets highlight clear weave patterns and are mostly chosen for motorsport and cosmetic‑visible components. Most of our automation and robotics customers pick matte‑finished carbon fiber laminate sheets, as they cut down annoying surface reflections and reduce obvious fingerprint marks during assembly work.

In‑house CNC machining solves common processing headaches We regularly see issues when customers send raw carbon fiber laminate sheets to outside job shops: frayed edges, surface chipping and inconsistent tolerances. Our own CNC team runs composite parts day‑to‑day. We tune spindle speed and feed rates specifically for carbon‑epoxy material. You receive parts ready for mounting and avoid extra cost from failed third‑party processing.

Flexible fabric and grade selection matched to your project Plain weave carbon fiber laminate sheets deliver balanced bidirectional properties and remain our first recommendation for most load‑bearing industrial fixtures. Two‑by‑two twill carbon fiber laminate sheets feature a distinct diagonal grain and are preferred for parts where visual appearance matters. We produce using T300, T700 and T800 carbon fiber grades, covering cost‑conscious general‑purpose fixtures through to high‑strength lightweight prototype work.

Product Specifications

表格

Item Available Options
Product Carbon Fiber Laminate Sheets
Base Material Continuous carbon fiber fabric + epoxy resin composite
Carbon Fiber Grade T300 / T700 / T800
Fabric Style Plain Weave / 2×2 Twill Weave
Surface Finish Glossy / Matte
Thickness 0.5 mm‑20 mm; non‑standard thickness requires internal technical review
Sheet Dimension Standard stock sizes / custom‑cut length & width
Geometry Flat carbon fiber laminate sheets / custom profiled blanks
Available Processing CNC cutting, drilling, milling, slotting, chamfering, contour machining
Production Mode Prototype sample, small‑batch trial run, mass‑volume serial production
Customization Fully customizable for dimension, weave pattern, fiber grade and machining requirements

Practical field note: tensile strength, flexural modulus and other mechanical values are not fixed for all carbon fiber laminate sheets. Results shift depending on fiber grade, fabric architecture, fiber volume fraction, ply stacking sequence and hot‑press curing cycles. We will not quote generic one‑size‑fits‑all mechanical figures. Our technical staff propose practical laminate configurations only after reviewing your actual load scenario, mounting method and on‑site working environment.

Custom Manufacturing & CNC Machining Services

Off‑the‑shelf carbon fiber laminate sheets seldom fit real‑project requirements. Very often customers need special cut‑outs, dense mounting‑hole arrays, irregular outlines or non‑standard thickness. Our custom workflow has been built around these real‑world pain‑points we encounter on a daily basis.

Drawing or physical‑sample acceptance We work from 2D engineering drawings, STEP / DXF CAD data, dimension‑marked PDF documents or physical sample parts. Physical samples prove especially helpful when clients cannot supply complete drawing files.

Application‑led material advice instead of blindly following requests Now and then customers specify high‑end carbon fiber grades based purely from internet information, even though their operating conditions do not demand such performance and end‑up wasting budget. Our composite engineers walk through load directions, weight‑reduction targets, ambient‑temperature limits and project budgets before confirming the best grade and weave for your carbon fiber laminate sheets.

Custom lamination production We produce custom‑dimension carbon fiber laminate sheets strictly following agreed technical specs. For unusual‑thickness panels we adjust pressing cycles upfront, drawing from past production experience to lower risks of warping and inter‑ply delamination.

In‑house CNC machining work Raw carbon fiber laminate sheets are processed into finished machined components. Work includes profile cutting, multi‑hole drilling, slotting, edge chamfering and complex contour work. Cutting parameters are adjusted for carbon‑epoxy composite material to keep edge fraying to a minimum.

Prototype validation prior to mass‑batch release For brand‑new component designs, we strongly suggest producing prototype carbon fiber laminate sheets first. Prototypes help check physical fit‑up, surface quality and dimensional accuracy, and prevent expensive mistakes in large‑volume orders.

Flexible production volume to match your timeline We support single‑piece prototype builds, small pilot batches and repeat large‑volume orders. Our workshop adjusts scheduling around your project milestones.

When sending an inquiry for carbon fiber laminate sheets, please include sheet dimensions, thickness, preferred fiber grade, weave and surface finish, real‑world load and application background, drawing or sample reference, order quantity plus any special tolerance requirements. This allows us to provide realistic pricing and lead‑time estimates.

Why Partner With Our Factory

First‑hand experience solving common composite manufacturing defects We have manufactured carbon fiber laminate sheets for robot frames, UAV structural blanks, motorsport modified components, industrial inspection jigs and sports‑equipment parts. On our production floor we regularly resolve known composite problems: panel warping, ply delamination, surface bubble defects and machining‑caused edge fraying. Our process parameters are refined from real‑production lessons rather than only theoretical datasheet values.

Full‑process, traceable quality checks Inspection runs through every manufacturing step: incoming verification for carbon fabric and epoxy raw materials; tracking temperature‑pressure curves during hot‑press lamination and curing; thickness measurement, flatness assessment and surface‑defect screening for finished carbon fiber laminate sheets; dimensional checks after CNC work; final visual inspection before packing. Batch‑specific test documentation can be provided upon request for internal audits or tender submissions.

Engineering input rather than purely order‑taking sales support When you source carbon fiber laminate sheets from us, our technical team reviews your application context. If the material combination you select carries hidden risks under your actual loading conditions, we point these concerns out and offer practical alternative suggestions.

Lamination press shop and CNC machining under one single facility Many market suppliers buy pre‑made laminate panels externally and then outsource machining to third‑party workshops. This creates miscommunication risks, dimensional inconsistencies and extended lead‑times. We own both hot‑press lamination lines and CNC workshops on‑site. Our one‑stop manufacturing removes intermediate links and stabilizes delivery schedules for carbon fiber laminate sheet orders.

Solid export operational knowledge for overseas industrial purchasers Our team regularly prepares export documentation, arranges seaworthy packing for composite panels and manages cross‑border shipment arrangements. We understand FOB and other international trade terms, and we are familiar with typical logistics pitfalls for shipping bulky composite sheets.

FAQ

Q1: What are carbon fiber laminate sheets most commonly used for? Carbon fiber laminate sheets see widespread use for robot structural plates, drone frame blanks, motorsport lightweight brackets, industrial inspection jigs, automation‑machine assemblies and high‑grade sports‑equipment components. Mechanical engineers select carbon fiber laminate sheets primarily to achieve light weight together with adequate structural rigidity.

Q2: What thickness of carbon fiber laminate sheets can you produce? Our regular production window for carbon fiber laminate sheets sits at 0.5 mm‑20 mm. Thinner or thicker panels require separate technical assessment based on your strength‑and‑weight targets.

Q3: How should I choose between T300, T700 and T800 carbon fiber laminate sheets? T300 carbon fiber laminate sheets deliver balanced performance with better cost‑efficiency for general‑purpose industrial fixtures. T700 carbon fiber laminate sheets offer improved strength‑to‑weight performance for weight‑sensitive moving components. T800 carbon fiber laminate sheets are reserved for high‑spec prototype projects with higher material costs. We recommend you make decisions based on real‑world load conditions instead of simply chasing higher‑number fiber‑grade labels.

Q4: Plain weave or 2×2 twill weave carbon fiber laminate sheets - which to pick? Plain weave carbon fiber laminate sheets deliver well‑balanced bi‑directional mechanical performance plus stable dimensions, making them our primary suggestion for jigs and load‑bearing structural panels. 2×2 twill carbon fiber laminate sheets show a distinctive diagonal visual texture and have better draping characteristics; these suit parts where cosmetic appearance is important.

Q5: Do you sell raw carbon fiber laminate sheets only, or finished machined components? We supply both unfinished flat raw carbon fiber laminate sheets and fully CNC‑machined finished parts. Send over CAD files or drawings, and we machine carbon fiber laminate sheets in‑house so you receive components ready for direct assembly.

Q6: Can I place a prototype‑sample order for carbon fiber laminate sheets before bulk purchasing? Yes, prototype carbon fiber laminate sheet orders are accepted. Sample production validates fitting performance and dimensional accuracy before you commit resources to mass‑volume manufacturing.

Q7: Are material test reports available for carbon fiber laminate sheets? Batch‑matched test documentation for carbon fiber laminate sheets can be issued when you request it.

Get In Touch Share your technical specifications, drawings, physical samples or real‑world application requirements for carbon fiber laminate sheets. Our combined engineering‑sales team evaluates your project and responds with practical solutions and realistic quotations.
