Introduction of product
With 11 years of expertise in carbon fiber manufacturing, we offer high-precision OEM customization from drawings or samples. Utilizing aerospace-grade T300 / T700 / T800 / T1000 carbon fiber, we employ vacuum hot-press molding and CNC precision machining to achieve ±0.1mm ultra-fine tolerance. Specialized in 3C electronics casings, automotive parts, drone frames, and industrial equipment, we deliver military-standard lightweight solutions tailored to your needs.
Size Customization
| 300*200*1 | 400*500*1 | 500*700*1 | 600*700*2 | 700*600*2 |
| 300*200*2 | 400*500*2 | 500*700*2 | 600*700*3 | 700*600*3 |
| 300*300*4 | 400*500*3 | 500*700*3 | 600*700*4 | 700*600*4 |
| 300*400*1 | 400*500*4 | 500*700*4 | 700*400*1 | 800*400*1 |
| 300*400*2 | 500*500*1 | 600*400*2 | 700*400*3 | 800*400*3 |
| 400*400*1 | 500*500*3 | 600*400*3 | 700*400*4 | 800*400*4 |
| 400*400*2 | 500*500*4 | 600*400*4 | 700*500*1 | 800*500*1 |
| 400*400*3 | 500*600*1 | 600*400*5 | 700*500*2 | 800*500*2 |
| 400*400*4 | 500*600*2 | 600*500*2 | 700*500*3 | 800*500*3 |
| 400*400*5 | 500*600*3 | 600*500*3 | 700*500*4 | 900*400*1 |
| 400*400*6 | 500*600*4 | 600*500*4 | 700*500*5 | 1000*1000*2 |
| 400*400*7 | 500*600*5 | 600*500*5 | 700*600*1 | 1000*1000*4 |
| If you don't have the size you need in the above sizes, please contact us and we can customize it according to your needs. | ||||

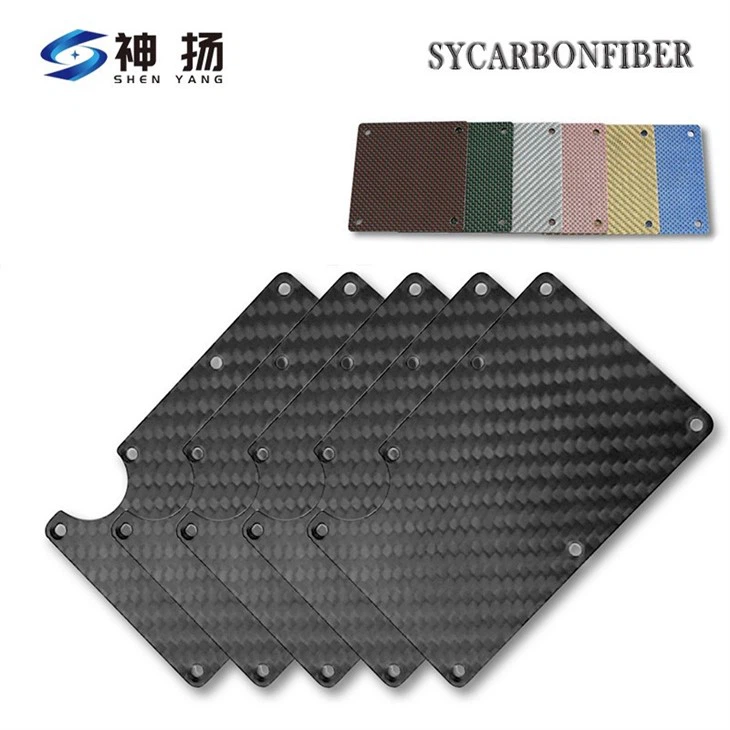

Carbon Fiber Sheets OEM Specifications
2,Maximum panel size:
3,Material:
4,Tolerance:
Features and applications
Carbon Fiber Sheets OEM processing, including but not limited to the following:
1. 3C electronics
Mobile phone substrate: 0.2mm ultra-thin carbon plate replaces steel plate, bending life exceeds 500,000 times
Notebook D shell: 3K twill carbon fiber texture + pre-embedded metal inserts, heat dissipation efficiency improved by 40%
2. Drone Frames
Agricultural drone pesticide tank base plate: Carbon fiber plate resistant to pesticide corrosion + 50% weight reduction, lightweight design extends flight time by 30 minutes
Mapping drone modular cabin: Quick-release carbon plate structure, field assembly efficiency improved by 200%
3. Travel Gear
Carbon fiber luggage: Not only lightweight but also highly durable (case can withstand up to 200kg)
Children's stroller frame: 1.8 kg self-weight with a load capacity of 100 kg
4. Home applications
Carbon fiber wall panels: Moisture-resistant, corrosion-resistant, crack-resistant, and aesthetically pleasing
Eyeglass frames: Lightweight design reduces pressure on the nose and ears
5. Medical applications
Portable stretcher board: Rollable storage design reduces load by 70% during field rescue operations
Detail introductions
Brand owners provide design specifications → Carbon fiber sheets OEM factories produce carbon fiber plates on demand → Private labeling for end-use products.
【Core values】
1. Cost reduction: Eliminates the high costs of customers building their own production lines (hot press machines/CNC equipment costing over ten million).
2. Agile response: 15-day rapid prototyping, with small batch orders starting at 10 pieces.
3. Performance assurance: Military-grade quality control addresses industry pain points such as material delamination and deformation.
【Key technological barriers】
1. Ultra-thin sheet forming: 0.2 mm thickness vacuum hot pressing without wrinkles (market yield rate < 30% → our yield rate > 90%).
2. Large size stability: 1200 × 4000 mm sheet surface temperature difference controlled within ± 2°C (core anti-warping).
Product evidence
Carbon Fiber Sheets OEM Authorized Certification System
1. International Compliance Certification
CE Certification, RoHS, REACH SVHC, compliant with EU Machinery Directive and safety standards, ensuring exported products meet the stringent requirements of the automotive/electronics industries.
2. Quality Management System
ISO 9001: Full-process standardized control (18 quality inspection points from raw material intake to finished product shipment)
3. Environmental Management System Certification
ISO 14001
4. Occupational Health and Safety Management System Certification
OHSAS 18001
5. Material Traceability Certification
Carbon Fiber Filament Certification: Toray T700/T800 Original Factory Warranty Certificate (batch numbers traceable)
Intimate Service and Worry-Free After-Sales
SYCarbon Fiber Factory
From initial consultation to bulk delivery, we provide "full cycle" service guarantees:
1. Pre-sale: Free professional guidance.
2. Production: 24-hour online response, proactive follow-up at key points.
3. After-sale: Lifetime material traceability for quality, solutions provided within 72 hours, and 100% of the cost of rework for orders scrapped due to manufacturing errors!
Many customers have highly praised our carbon fiber sheets, tubes, and custom parts. Selected genuine feedback is shown below .
accompanied by unedited chat screenshots
FAQ
Q: What documents are required for sample production?
A: 3D drawings (STEP/IGS) or physical samples are acceptable.
Q: What is the minimum order quantity (MOQ)?
A: 10 pieces per specification.
Q: Q: Can the thickness of carbon fiber plates be less than 0.1mm?
A: The minimum thickness for mass production is 0.2mm.
Q: Why choose us over other OEM factories?
A: Industry-unique ±0.05mm ultra-high precision CNC compensation technology; 1200°C ultra-high temperature molds (industry standard ≤800°C); large hot press tanks capable of producing ultra-large carbon fiber plates that competitors cannot produce.
Q: Do you support customer-supplied carbon fiber materials?
A: No, we do not support this. There are certain risks involved. If the customer-supplied materials are of poor quality, it will affect the quality of the carbon plates and result in damage to the customer's interests. Therefore, we do not recommend this practice.
Company New
As a company dedicated to creating a global carbon fiber customization market, SYCarbon Fiber has welcomed numerous clients from various countries this year and is redefining industry standards for "personalization." Whether it's the irregular cutting of a 0.2mm ultra-thin watch case back or the gradient density layering of a 2m×4m drone frame, we can precisely bring your design concepts to life. In the future, we will integrate AI intelligence and AR real-time assembly simulation to make the combination of carbon fiber textures, functional coatings, and structural properties intuitive and visual. The new smart manufacturing production line, set to begin operations in the second half of 2025, will reduce customization lead times to 7 days and achieve tolerance control of ±0.05mm, truly realizing "what you see is what you get."
