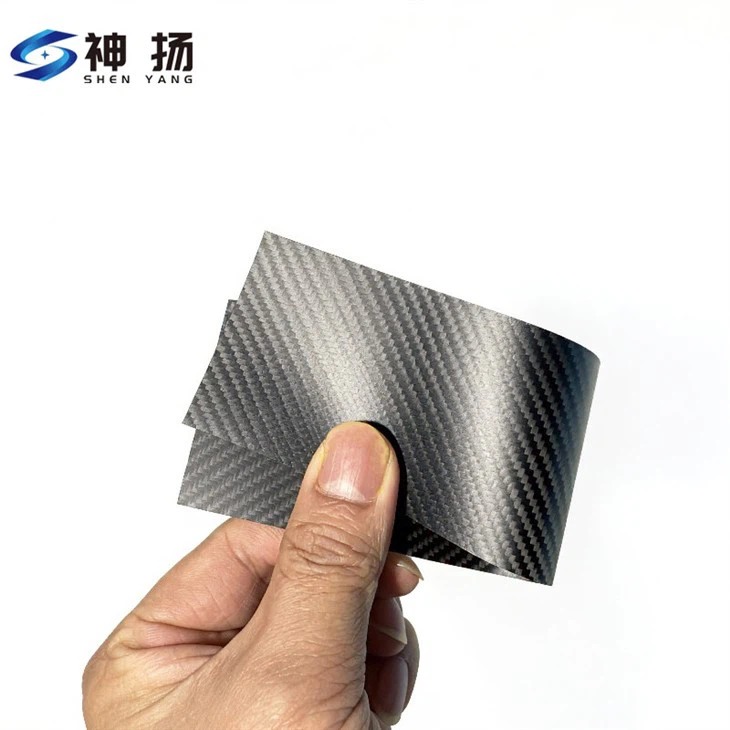

Thin Carbon Fiber Plate

The core advantage of our thin carbon fiber plate is the ability to achieve reliable ultra-thin thickness without sacrificing structural stability. Using 1K carbon fiber, we can produce plates as thin as 0.1mm, while 3K carbon fiber supports stable production at 0.2mm thickness.

1K carbon fiber has finer filaments, allowing tighter fiber packing and more uniform resin distribution. This prevents dry spots and thickness fluctuation, which are common problems when producing ultra-thin laminates. At 0.1mm, the plate remains flat and flexible enough for compact assemblies, while still offering directional stiffness.

For applications requiring higher rigidity, 3K fiber at 0.2mm provides a better balance between strength and weight. This thickness range is commonly used in drone structural skins, electronic housings, sensor mounting plates, medical device panels, and lightweight reinforcement layers.

Compared with aluminum or plastic sheets at similar thickness, carbon fiber does not permanently deform under vibration and shows better fatigue resistance over long-term use.

Producing ultra-thin carbon fiber plates requires strict control of resin content and curing pressure. Excess resin increases brittleness, while insufficient resin causes weak bonding between fibers.

We use low-viscosity epoxy systems to ensure full impregnation of fine carbon fibers without adding unnecessary weight. During curing, pressure and temperature are precisely controlled to prevent warping and thickness inconsistency. Fiber orientation can be adjusted to achieve stiffness in specific directions, depending on the application.

CNC trimming is used to achieve clean edges without fiber pull-out, which is especially important for plates at 0.1–0.2mm thickness.

Each batch undergoes inspection for thickness consistency, flatness, fiber alignment, and surface quality. Mechanical evaluation focuses on flexural stiffness, interlayer bonding strength, and resistance to cracking under localized loads.

Our production follows ISO 9001 quality management standards. These controls ensure that customized thin carbon fiber plate products maintain consistent performance from prototype to mass production.

SYCarbonFiber Factory works closely with engineers and sourcing teams during material selection. We help determine whether ultra-thin laminates should prioritize stiffness, flexibility, or surface quality based on real usage conditions.

OEM and ODM services are available. Customers can provide drawings, CAD files, or performance targets. Free samples support early testing and help shorten development cycles while reducing risk.
