1. Core Advantages - Why an X8, Not Just More Motors
Redundancy built into the layout. Coaxial eight-motor X8 means four arms, eight props - loss of one motor still leaves controllable thrust. For industrial missions that redundancy is the reason to choose it.
Thrust where the payload is. The platform carries the heavier stuff - large gimbals, LiDAR, cargo tanks - that a quad can't lift without going fragile.

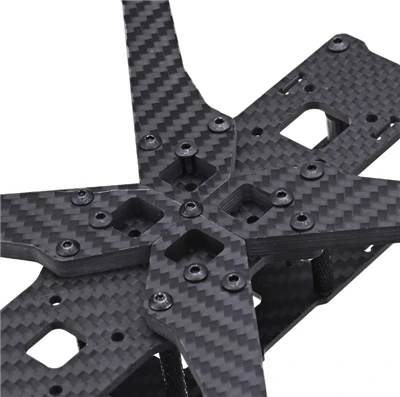

A rigid carbon airframe underneath. 3K carbon plates and CNC aerospace-aluminum joints: stiff enough to hold motor alignment under load, light enough not to eat your payload budget.
kitsonix.comaoexo.com
2. Parameter Table (Typical Values, by Payload Class)
| Class | Payload range | Frame weight | Prop class | Battery |
|---|---|---|---|---|
| Light X8 | 2 – 6 kg | ~1.7 – 2.1 kg | 12 – 15 in | 6S |
| Medium X8 | 8 – 10 kg | 17 – 22 in | 6 – 12S | |
| Heavy X8 | 20 – 30 kg | 22 in+ | 12S |
| Build parameter | Typical value |
|---|---|
| Material | 3K carbon + CNC 7075 aluminum joints |
| Arms | Foldable, tool-optional removal |
| Payload bay | Open layout, quick-release mount |
| Landing gear | Fixed or retractable option |
| MOQ | Frame kit from small qty |
Typical industry values; final specs locked from your payload and motor selection.
3. Customization - Match Your Mission
Arm length / motor spacing to your motor and prop.
Payload bay layout for gimbal, LiDAR or cargo mount.
Foldable arms for transport case.
Surface and branding on request.
4. Company Advantages - Factory Export
Frame-specialist. Carbon plates, roll-wrapped arms and machined joints from one factory.
Flexible shipping. Express for sample frames, sea freight for batches.
5. FAQ
Q: Is this a ready-to-fly drone? No - this is the airframe/platform frame. Motors, FC and avionics are your integration.
Q: What payload can it really lift? Depends on your motor and battery choice; frame scales to the class you specify.
Q: Do the arms fold? Yes - foldable arm design for transport.
Q: Can you customize the payload mount? Send your payload footprint; we design the bay and interface.
