Features

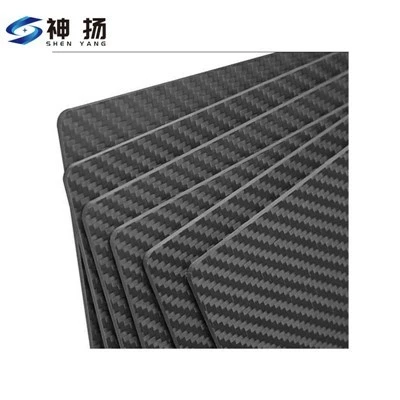

Weave: 3K twill (classic diagonal pattern) - decorative and functional

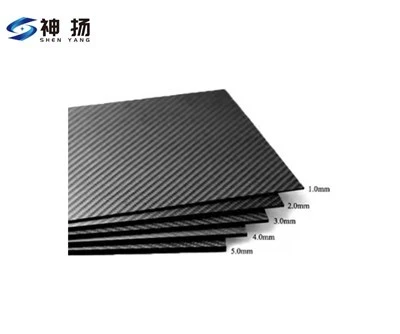

Thickness: 2mm (light structural) / 4mm (heavy-duty brackets, drone plates)
Finish: Gloss (show-grade) or Matte (anti-glare, fingerprint resistant)
Layup: Symmetric [0°/90°] cross-ply - flatness <0.2mm after CNC
Tolerance: Thickness ±0.1mm, cut ±0.15mm
Edge: CNC chamfered, sealed, no delamination
Specifications
|
Parameter |
Value |
|---|---|
|
Material |
3K T300 / T700 Carbon Fiber Prepreg |
|
Thickness |
2mm / 4mm (0.2–12mm available on request) |
|
Sheet Size |
400×500mm / 500×600mm stock; custom cut to DXF |
|
Density |
~1.5 g/cm³ |
|
Tensile Strength |
3500 MPa (T300) / 4900 MPa (T700) |
|
Flatness |
<0.2mm warp over 300mm |
|
Operating Temp |
-40°C to 120°C (epoxy matrix) |
|
Surface |
One-side decorative / One-side peel-ply (for bonding) |
Applications

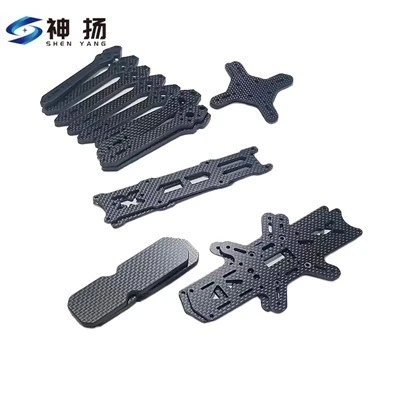

Drone frame plates, motor mounts, landing gear brackets
Industrial fixtures, machine guards, automation bases
Automotive interior trims, dashboard panels
RC car chassis, FPV stacks, electronics enclosures
Architectural cladding, display panels
In-House CNC Services
Drilling (Ø0.8–12mm)
Countersink / Counterbore
Pocket milling
Threaded insert installation (M3–M8)
Waterjet cutting for complex profiles
Why Buy From Us
✅ Real factory - Huizhou, Guangdong, 8,000+ m², 3 production lines
✅ Symmetric ply schedule - no banana warp after machining
✅ ±0.1mm thickness tolerance, ±0.15mm cut tolerance
✅ T300 / T700 / T800 grades available
✅ MOQ 5 pcs for custom cut, 1 pc sample
✅ DFM review before production - we flag design risks
✅ Export packaging: foam + bubble + carton + pallet
Ordering Guide
Send DXF / STEP / PDF drawing
Specify: thickness, quantity, finish (gloss/matte)
We confirm ply schedule + DFM feedback + quote within 24h
Sample 3–5 days, bulk 7–15 days
