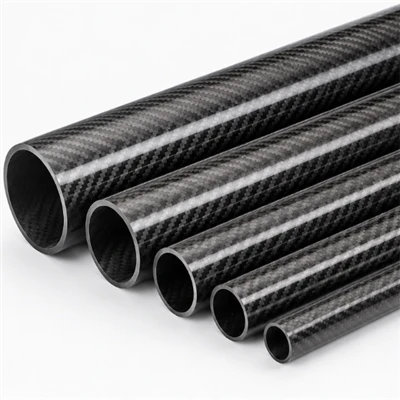

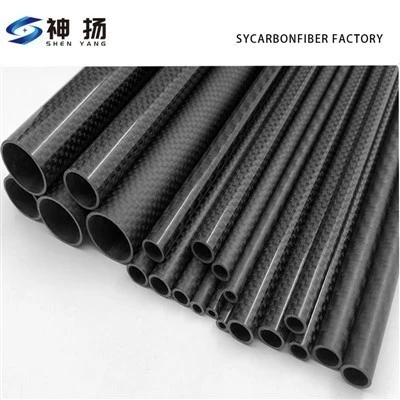

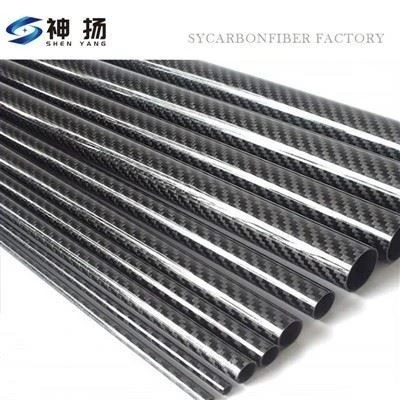

Detailed Description
Mechanical engineers specifying drive shafts and pressure lines require predictable hoop strength, torsional stiffness, and fatigue life. Steel torsion bars (7.85g/cm³) add parasitic inertia to robotic joints; aluminum tubes lack torsional rigidity for torque >50N·m continuous.
Feature: T700/T800 filament wind with adjustable [hoop/axial/helix] ratio, fiber angle ±1.5°, autoclave post-cure.
Advantage: Hoop tensile ≥1800MPa, burst pressure tested per batch (hydrostatic to failure), GJ up to 45N·m² (40mm OD×3mm wall), fatigue >5M cycles @R=-1 50% UTS.
Benefit: 70% lighter than steel shaft at equivalent torsional stiffness; customizable fiber architecture to match your torque/speed envelope; we supply FEA beam properties (GJ, EA, EI) in NASTRAN/ANSYS format; hydrostatic burst test coupon per production lot; CTE tunable near-zero for precision roller applications.
End preparation: bonded metal insert, threaded adapter, or flange bonding. Full test report (FVF, burst pressure, torsion spring rate, CTE) per batch.
Specification
|
Parameter |
Value |
|---|---|
|
Process |
Precision filament wind + autoclave |
|
Fiber |
T700 / T800 / M40J |
|
OD |
10–120mm |
|
Wall |
1.0–8.0mm |
|
Length |
≤4000mm |
|
Hoop tensile |
≥1800MPa |
|
Burst pressure |
Tested per batch |
|
GJ |
up to 45N·m² (40mm OD×3mm) |
|
Fatigue |
>5M cycles @50% UTS |
|
Export |
Legal export full docs |
Company Profile
FAQ
Q: Torque capacity for 40mm×3mm T800 tube as drive shaft?
A: Continuous safe torque 85N·m (yield-based factor 3); peak 180N·m transient. Torsion spring rate 52N·m/°.
Q: Can you supply GJ/EA/EI for my FEA model?
A: Yes, beam property extraction per ASTM D5448, Excel/NASTRAN format.
Q: Pressure line application-fluid compatibility?
A: Epoxy matrix compatible with hydraulic oil, water-glycol, diesel; PTFE liner available for aggressive chemicals.
Q: End connection options?
A: Bonded threaded insert (steel/Ti), flange plate bonding, or custom molded end fitting-designed per your torque/pull-out requirement.
Q: Export documentation?
A: HS 6815.99, MSDS, CO, material cert, burst test report, dual-use screening.
